Aliran tunggal katup solenoid dispenser LPG

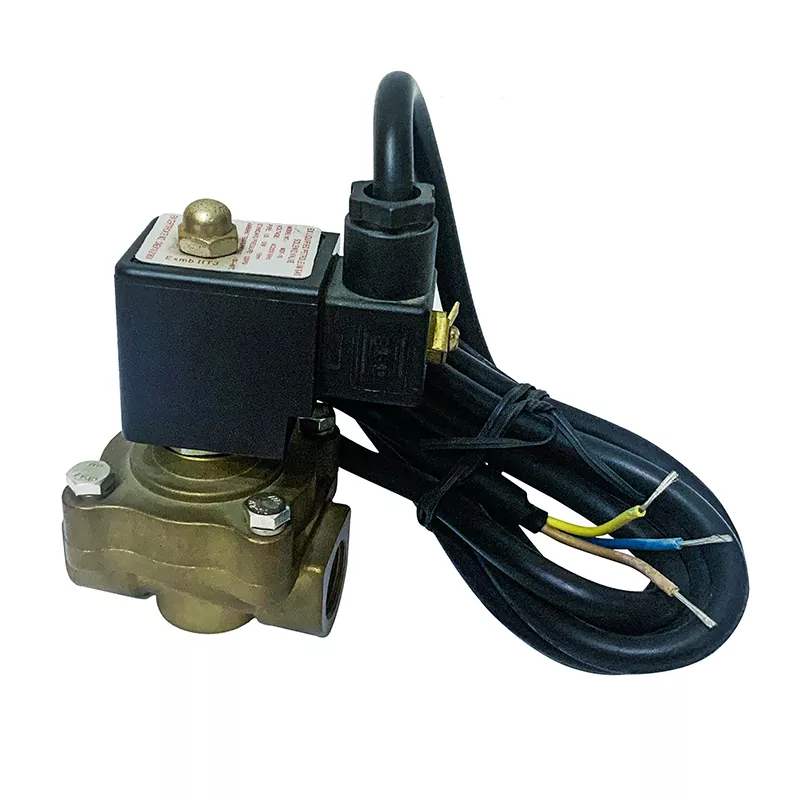

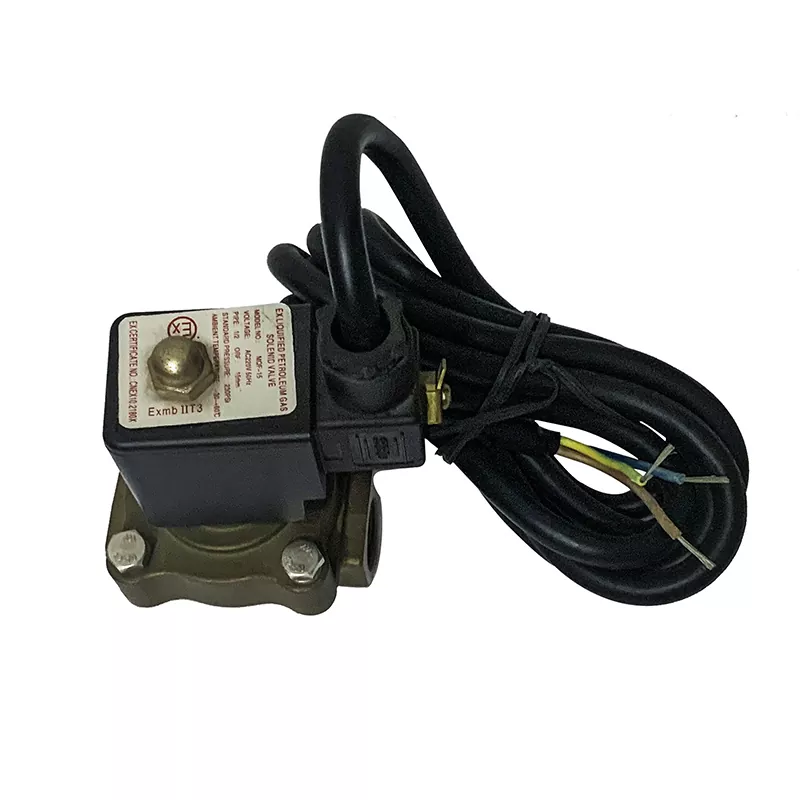

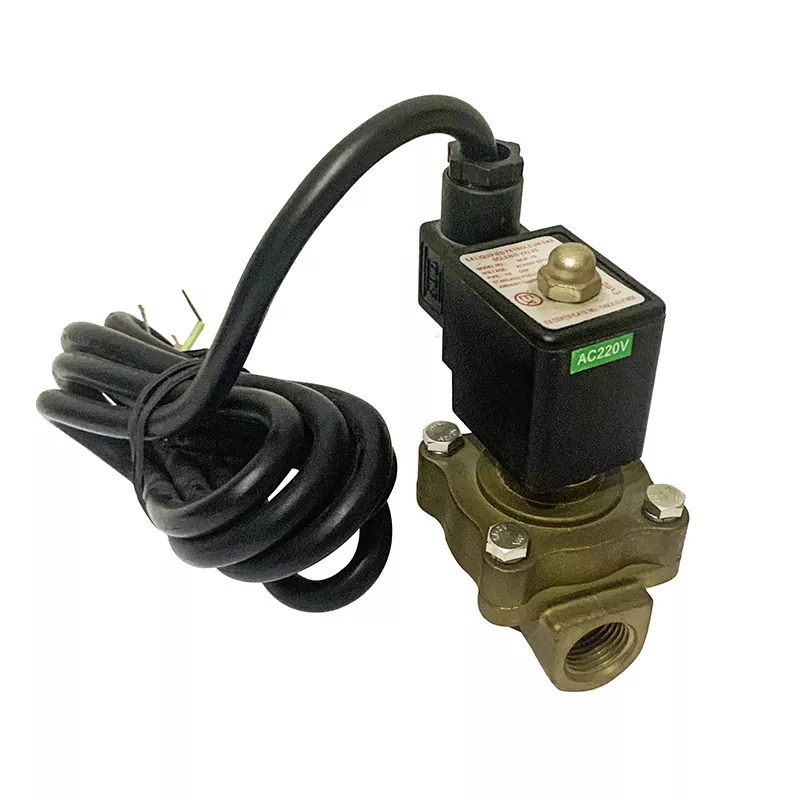

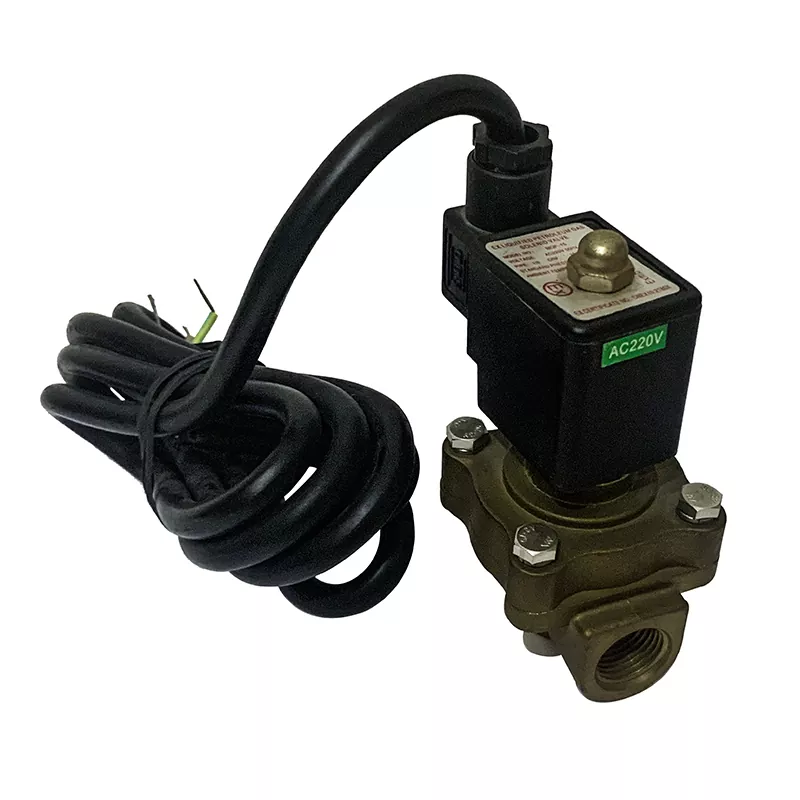

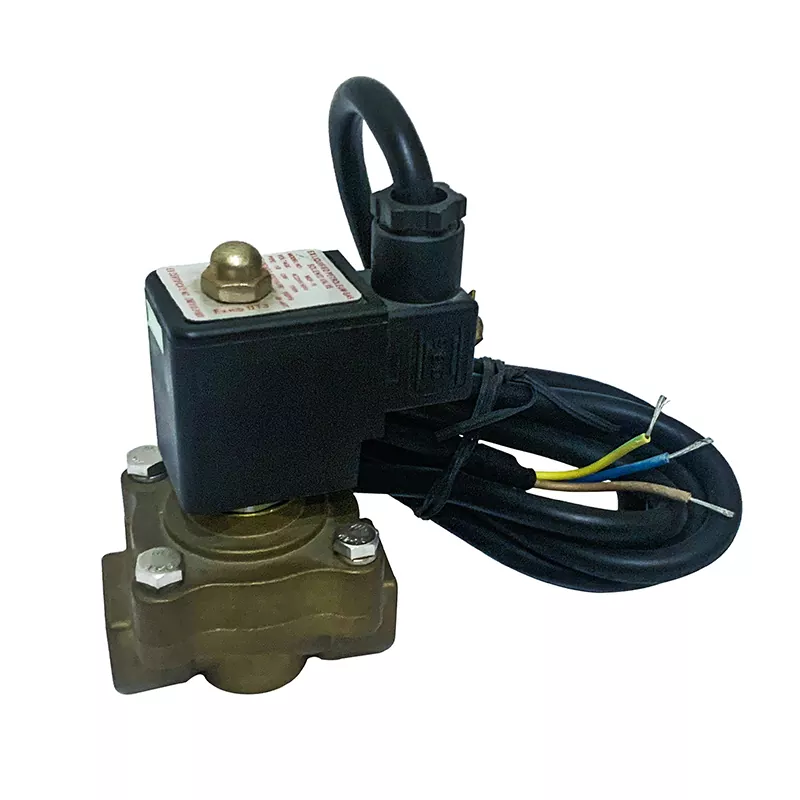

A Single Flow LPG Dispenser Solenoid Valve is an electromechanically driven rapid-acting safety device used to control gas supply to equipment and pipelines while enhancing operational efficiency. Electromagnetic valves are installed in liquefied petroleum gas (LPG)/ammonia/natural gas pumping equipment, metering devices, refueling systems, and gas and storage tank applications. Made from high-quality materials, Single Flow LPG Dispenser Solenoid Valve’s diaphragm is made of imported special rubber, which is highly corrosion resistant and can withstand low temperatures of -20°C. The magnetic circuit components are made of special stainless steel magnetic materials, which will never rust or generate residual magnetism. The coil components are made of imported F-class enameled wire, which has excellent insulation performance.

Product Parameter (Specification)

Feature

1. Precise action

Upon receiving an electromagnetic signal,Single Flow LPG Dispenser Solenoid Valve can respond immediately to open or close the valve,after receiving an electrical signal, electromagnetic energy directly retracts the valve plug, allowing the medium to flow through. After the power is cut off, the electromagnetic energy disappears, and the valve plug falls under its own weight and spring force, cutting off the flow of the medium.protecting equipment safety.

2. High-quality materials

Single Flow LPG Dispenser Solenoid Valve’s diaphragm of main valve has capability of anti-corrosion and resisting-20℃low temperature.Special stainless steel magnetic material never rusts and generates remanent magnetism. Class F loop with good insulation.

3.safety and efficiency

When an accident occurs,the quick response of Single Flow LPG Dispenser Solenoid Valve can prevent LPG leaks and avoid poisoning accidents to protect not only people but also equipments’ safty.

Application

A Single Flow LPG Dispenser Solenoid Valve is an electromechanically driven, fast-acting safety device used to control the LPG supply to equipment and pipelines,as while as improving equipment efficiency. Solenoid valves are installed in liquefied petroleum gas/ammonia/natural gas pumping equipment, metering devices, refueling systems, and gas and tank applications.
